liquid storage bladders

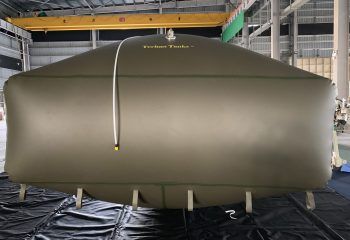

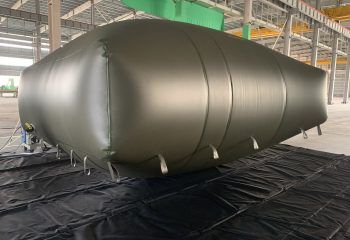

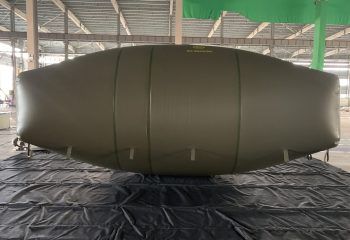

A Techno Tanks™ bladder tank is a large, flexible container used to store many types of liquids.  When maximum capacity is reached, the bladder tank takes the form of a large pillow, hence it is also called a pillow tank. Flexible bladder tanks are made with high resistance PVC material or TPU materials and are welded with high frequency (HF) soldering techniques. The bladder walls are made of polyester with PVC induction. The materials used in bladder walls are generally UV resistant and are chosen for their chemical stability and resistance to mechanical abrasion. Additionally, they are fabricated specifically to allow the tank to stand independent of any external support.

Different compositions of bladder walls are used to store different types of liquid. For example, a particular design may be suited for hydrocarbon storage but others could be used for liquid fertilizers, chemical products, rainwater, drinking water or use water. Installation of a bladder tank is fast and simple, it requires a relatively large, flat, open surface free of rocks or other materials that might damage the walls. A berm liner is often used to minimize surface irregularities  and reduce the chance of abrasion and tank failure.

Benefits and uses

  • Light weight.
  • Flexible and mobile.
  • Reusable and long lasting.
  • Stores chemical products and fertilizers.
  • Stores petrochemicals and oil by products.
  • Stores all types of water and water based liquids.
  • All materials are recyclable and reusable.

Bladder tanks are lightweight, flexible, mobile and can last for many years. The materials used to make bladder walls are recyclable and can be re-used for other purposes. Bladder tanks have capacities up to 1,000 cubic meter. Liquid stored in a flexible bladder tank does not evaporate and any odor it may produce is completely sealed within the tank. Contaminants cannot enter a properly sealed tank. Bladder tanks have many practical applications and can be commonly found in agriculture, industry, civil protection, military bases and humanitarian relief efforts.

With our tanks, you can have a liquid storage solution anywhere you want in a matter of hours. Contact us to discuss your particular needs and learn how our team can help improve your operations.

Convert non productive spaces likes holes, cellars and hills into highly productive zones with our flexible bladder tanks!

There are two main construction materials; Poly Vinyl Carbonate and Thermoplastic Poly Urethane. The PVC works well for water, fertilizers of any water based product while the TPU is resistant to chemicals, fuels, oils and pesticides. FDA has approved this materials for potable water storage.

Are you in need of a bladder or pillow tank?
